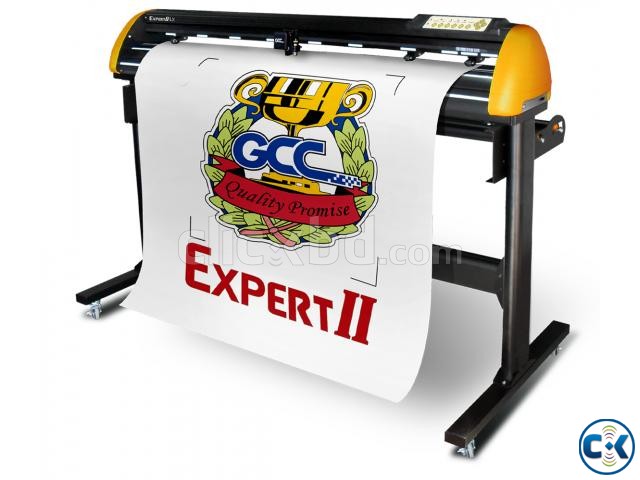

Heat Transfer Vinyl Plotter Cutting Machine - EXPERT II

Expert II is the standard plotter cutting machine best for beginners or and provides sign makers with optimum speed, superior quality, solid reliability and unmatched value. Expert II produces eye-catching graphics with up to 27.8 ips (25 ips for EX-52 models ) cutting speed, 350g of cutting force and three meters (9.84 feet) of tracking ability. The versatile Expert II Series sets a new benchmark for value, offering high accuracy and reliability at an unbelievably affordable price.

Specification
Model EX II-24/ EX II-24LX
Max. Cutting Width 600 mm (23.6 in.)
Max. Media Width 719 mm (28.3 in.)
Acceptable Material Thickness 0.8 mm
Max. Cutting Force 350 g
Max. Cutting Speed 705 mm/sec (27.8 ips)(at 45 degree direction)
Mechanical Resolution 0.012 mm (0.00047 in.)
Software Resolution 0.025 mm (0.00098 in.)
Distance Accuracy ±0.254 mm or ±0.1% of move, whichever is greater
Repeatability ±0.1
Tracking 3M
Memory Buffer 1 MB / 500KB(when using AAS)
Type of Command HPGL, HPGL/2
Configurable Origin Yes
Repeat Yes
Copy Yes
Control Panel 6 LEDs / 10 Keys
Diameter of Blade 2.5 mm
Dimension (HxWxD) mm 233*880*255
Dimension (HxWxD) in 9.1*34.6*10
Net Weight 11KG (24.3lb)
Stand Optional
Automatic-Aligning System Available on Expert II LX models
(AAS II)
Power Supply 100-240 VAC, 50 / 60 Hz (auto switching)
Power Consumption Max. 288 W
Operation Environment (Temperature/Humidity) 15° C~30° C / 60°F~86° F
25% ~ 75%

• Compatible with Windows 7and above and MAC OS X 10.6 and above.
• The specification and data sheet may vary with different materials used. In order to obtain the best output quality, please maintain the machine regularly and properly.
• We reserves the right to change the specifications at any time without notice.
• We certified material in tracking is Avery MPI 3000.
• The above listed specification values are effective only when operated with media certified by us.
